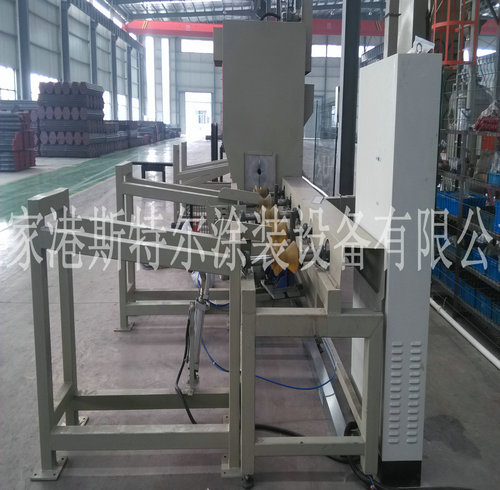

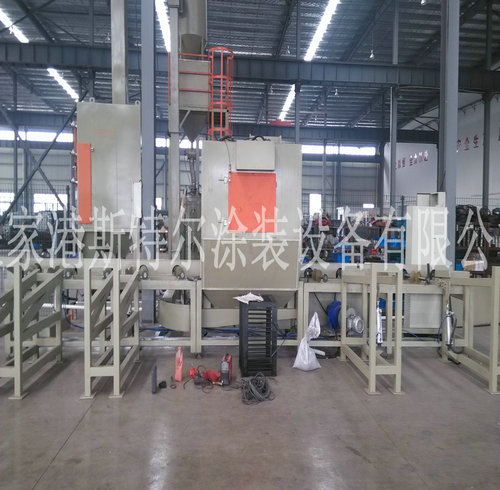

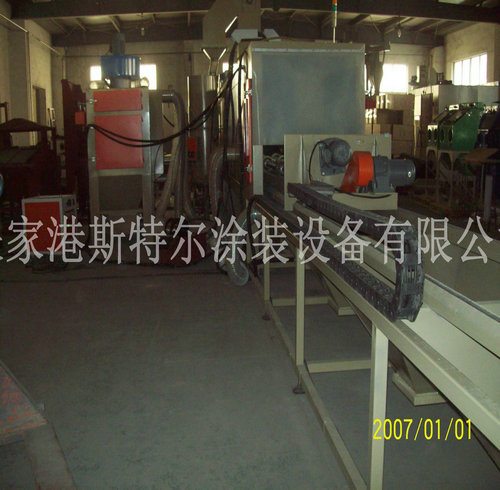

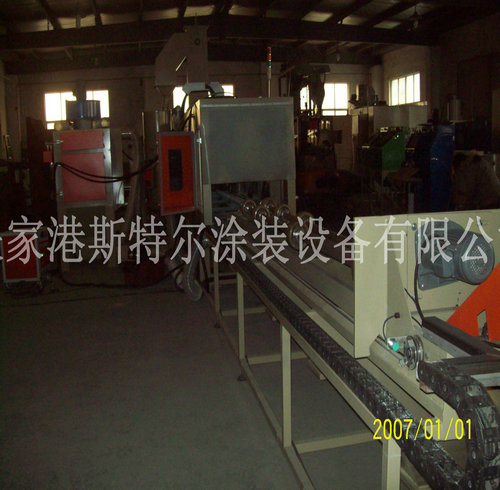

管道外壁自動噴砂機
◆適合位置 Applicable scope
管類產品,如:型鋼、彈簧鋼、支撐(cheng)桿(gan)、絲(si)杠、大形圓(yuan)形、柱體類、圓(yuan)形型鏜孔;應(ying)用雙槍(可按耍求多槍)及(ji)漩(xuan)風(feng)式(shi)清灰器和(he)光電(dian)材料感測(ce)器系(xi)統(tong),增進(jin)了生孩子的效(xiao)率(lv)及(ji)大的限(xian)制了保修率(lv)。 (此(ci)機器需設定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆具體工藝性能參數 Main technical parameters
|
儀器技術參數 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
崗位艙厚度 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
服務器厚度 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
壓縮的新鮮空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
交流電源 Power |
220v 50Hz |
220v 50Hz |
|
調頻電機馬達變速器 Governor |
250W×2 |
250W×2 |
|
區分器馬達 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
分離處理器新風量 Air separator |
35m3/min |
35m3/min |
|
產品體積 Machine weight |
900kg |
900kg |
