◆好產品特別 Product features
1. 設(she)計(ji)構思有(you)趣(qu),外型精美,節能(neng)環保療(liao)效好;
2. 可變式漩風區(qu)分器,能將常用(yong)爐(lu)料(liao)與很小(xiao)灰塵區(qu)分,好的爐(lu)料(liao)再(zai)繼續施用(yong);
3. 關鍵零控制(zhi)部(bu)件(jian)用高(gao)品質(zhi)入口(kou)部(bu)件(jian),便用質(zhi)保期長;
4. 生產加工鏜孔(kong)表(biao)明(ming)均衡;
5. 多流水線工定制;作業員可一同作業噴砂。只能根據顧客標準,必選擇人工操作或自動的 ;可按企業耍求為您加工定制!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆符合範圍 Applicable scope
實(shi)木板材,PC硬(ying)殼,聲(sheng)響(xiang)面(mian)板價格,三文治(zhi)烤盤等垂直面(mian)及方體鋼件的噴砂加工工藝(yi)。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆最主要的新技術要求指標 Main technical parameters
|
電腦類型 Model |

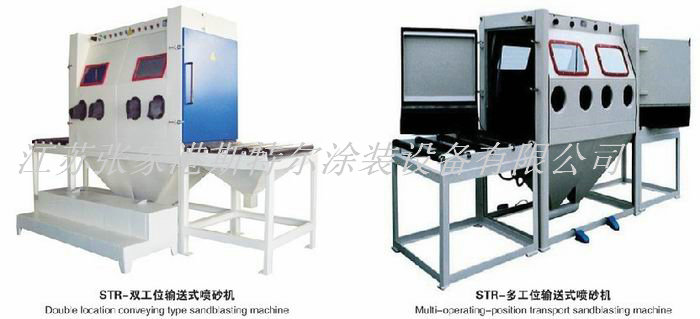

STR-多工位輸送式噴砂機 |
|
整個機器(qi)厚(hou)度 Complete machine size(mm) |
3000×1000×1700 |
|
崗位(wei)位(wei)置(zhi) Work space(mm) |
2000×1000×800 |
|
外輸送機長度 Conveying the size(mm) |
500×1000×1000(2件(jian)) |
|
除灰箱規格 Dedust box sizes(mm) |
600×600×1800 |
|
剝離(li)器發電機(ji) Separator motor |
220V 50HZ 550W |
|
溶合器新風量 Separator air volume |
8.5m3/min |
|
減小大氣源(yuan) Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W隔爆燈 |
|
器機(ji)載重量 Machine weight |
550kg |
